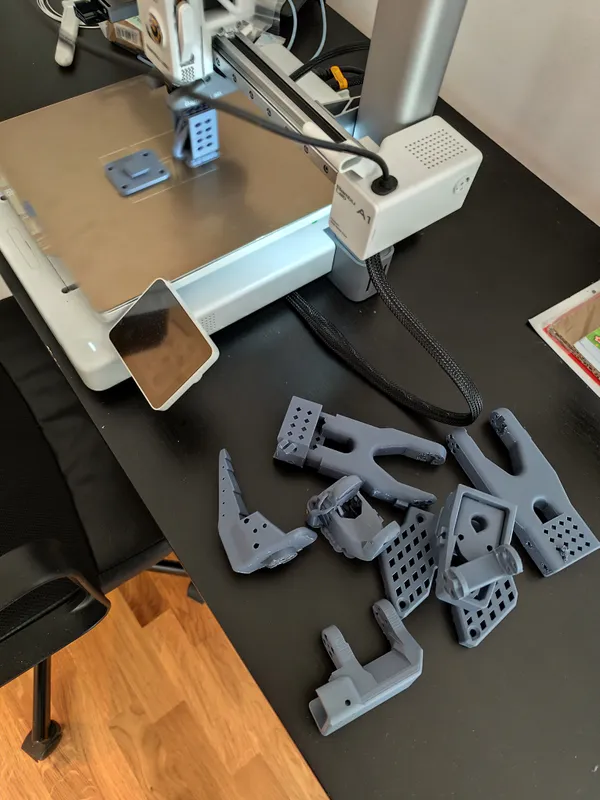

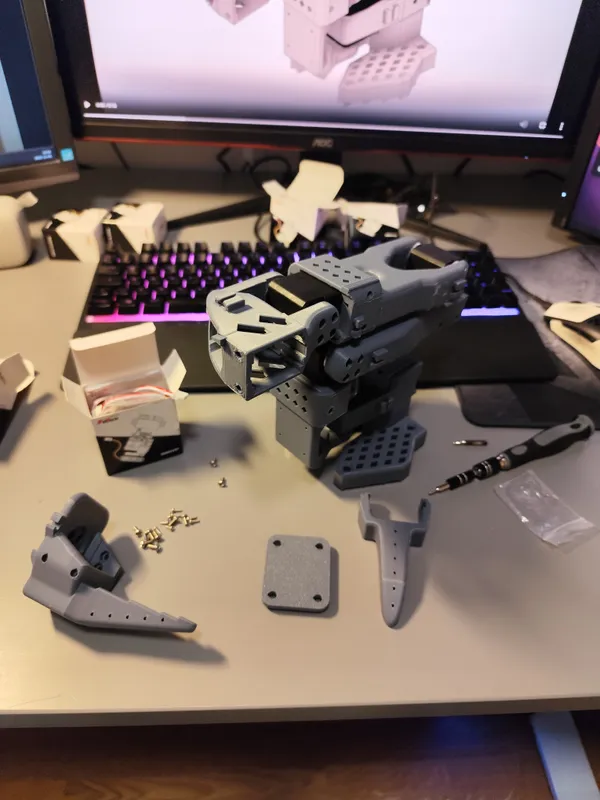

Robot Arm Control System

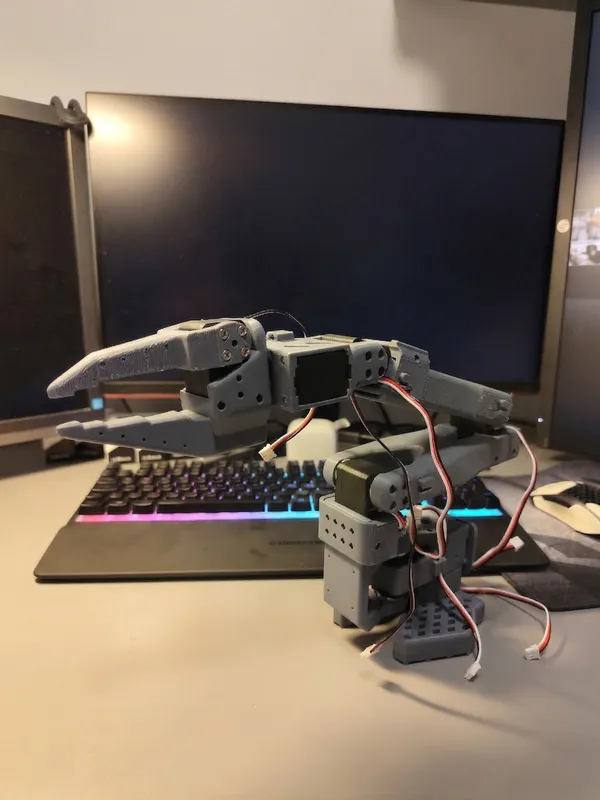

The hardware-control layer combines an arm model with LeRobot's SO-101 interface. It manages the connection lifecycle, synchronizes software state from the servos, and sends commands for the six joints: shoulder pan, shoulder lift, elbow flex, wrist flex, wrist roll, and gripper. The control system supports both direct joint movement and movement to a target position calculated with inverse kinematics. The control system supports both direct joint movement and movement to a target position calculated with inverse kinematics. To explore the underlying mathematics and kinematics in more depth, I researched the IK calculations and implemented a custom solver based on the arm's geometry. A small browser-based simulator was built primarily to confirm that the inverse-kinematics calculations behaved as intended while developing the motion logic. It was built as a 2D debugging aid and as a visual sanity check for the geometric model.

Forward kinematics calculates the arm's end-effector position and orientation from its joint angles, link lengths, base offset, joint offsets, and motor direction signs. The inverse-kinematics solver turns a requested arm position into joint angles. It checks possible poses against the calibrated limits and chooses the one closest to the arm's current posture, helping movements stay smooth and avoid sudden flips. When the requested orientation is unreachable, nearby orientations can be searched for an alternative solution.

Calibration data provides degree limits for every motor. These limits are loaded for the planar kinematics and applied again immediately before commands are transmitted, so direct controls, IK targets, presets, and recorded plans all use the same safety boundaries. Automated tests cover the kinematics calculations, joint-limit behavior, and robot-arm state handling.

flowchart LR
    G[Gamepad] --> T[Teleoperation]
    D[Pygame Dashboard] <--> I[JSON IPC]
    I <--> T
    T --> C[Robot Control]
    K[Calibration Data] --> C
    C --> M[IK and FK]
    C --> L[LeRobot SO-101]
    S[Browser Simulator] --> M

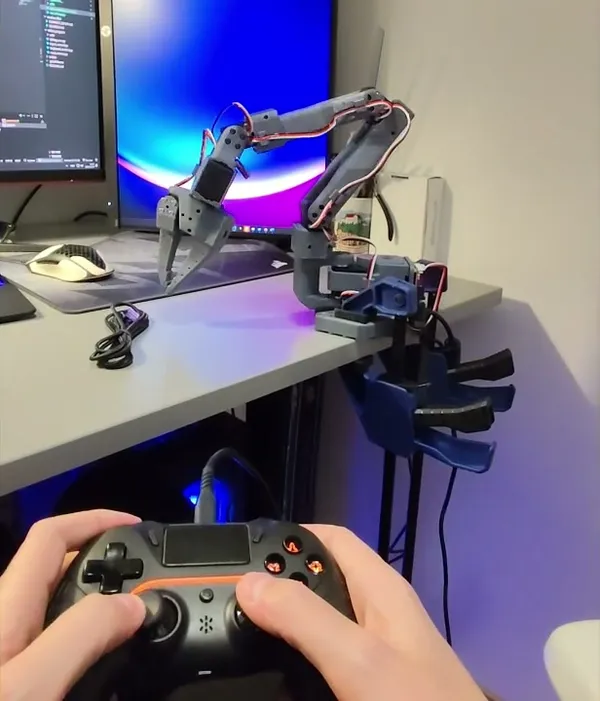

Gamepad teleoperation maps sticks and triggers to end-effector movement, orientation, wrist roll, and gripper changes. A Pygame dashboard visualizes the controller state and provides manual joint-entry controls. It communicates with the teleoperation process through project-local JSON files, keeping hardware communication in one process while exchanging commands and live telemetry with the dashboard. Deadzones, change thresholds, controller profiles, and a deadman control are used to make input predictable and stop continuous movement when the safety control is released. Preset poses move the joints gradually rather than making the arm jump straight to a new position.
